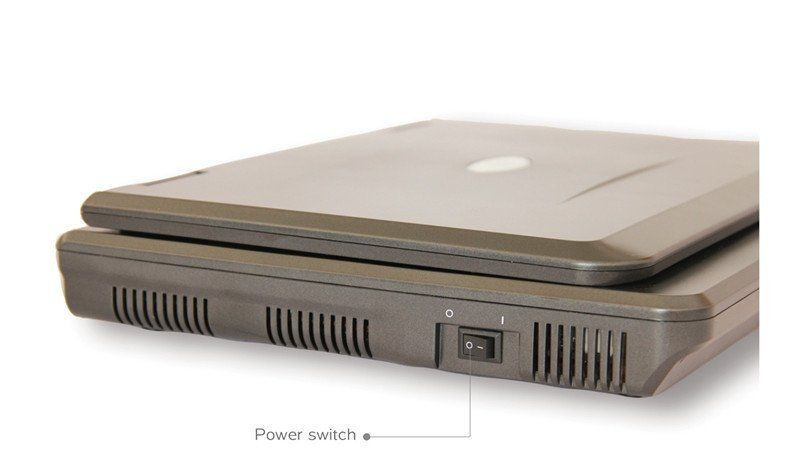

NEW CONTEC Portable Laptop Machine Human System Ultrasound Scanner Convex probe
InstructionsThe notebook type CMS600P2 is a full digital B-Ultrasound diagnostic system. It adopts embedded operating system, which greatly optimizes the product performance. The system is taken more conveniently for its high effective data processing ability, pop-up menu and keyboard design. It includes rich measuring software packages that satisfy the clinic diagnostic need fully.
Main Features
? The device which adopts linux embedded operating system, has well compatibility, transplantable character, and flexible expansibility.
? It adopts advanced full digital beam-forming, real time dynamic aperture, real time dynamic receiving apodization, real time dynamic receive focusing, frame correlation, modern image processing technology etc., which improves image quality.
? The system can be taken conveniently for notebook type, built-in battery, high integration of unit, small volume, light weight.
? It adopts touch type folding keyboard, flexible and shortcut trackball operation, which greatly quicken the test speed.
? Neat and convenient image managing function which can print and export report.
? It includes rich measuring software packages:obstetrics, gynecology, cardiology, urology, small parts. Many probes can be chosen, and wide application can satisfy the clinic diagnostic need fully.
? Near gain, far gain and total gain can be adjustable alone.
? Possess external memory function.
? Can be connected to the video printer, inkjet printer, laserjet printer.
Main Performance
? Display mode:B,2B,4B,B/M,M
? Image gray scale:256
? Monitor:10.1 inch TFT LCD
? Display resolution:1024*600
? Lateral resolution:2 mm (near field) 4 mm (far field)
? Axial resolution:2 mm (near field) 2 mm (far field)
? Dead zone:?3 mm
? Display depth:?240 mm
? Horizontal geometric position precision:?5%
? Vertical l geometric position precision:?5%
? Zoom:0.9, 1.0, 1.1, 1.2, 1.3, 1.5, 2.0
? Cine loop:600 frames
? Image storage:2048 frames
? Body mark:43
? Focus:The number and position can be adjustable.
? Assistant tool:Puncture guide and histogram
? Obstetrics, gynecology, cardiology, small parts, urology etc. can generate reports automatically.
? Measurement:Distance, circumference, area, volume,angle, ratio, slope etc.
? Support Chinese, English language interface display and input.
? The management interface menu, Chinese and English operating systems, image processing default and a key function of optimization.
? Measurement formula can be set up differently according to the different race.
? Comment:Date, time, name, hospital,number, frame rate, depth, gain, dynamic range, frame correlation, frequency etc.
? Image processing:Controllable frame correlation, gamma correction, histogram
? Image conversion:Up and down, left and right, black and white
? Tissue harmonic imaging
? Screen comments function in both Chinese and English
? Support USB storage
? Update software though USB
? Interface:USB,Video,VGA
Standard Configuration
? 3.5 MHz convex probe, 2.0 MHz~5.0 MHz Applications:Abdominal organs examination
Optional Configuration
? 3.5MHz micro-convex probe,2.0 MHz~5.0 MHz Applications: Cardiology examination
? 7.5 MHz linear probe, 5.0 MHz~10.0 MHz Applications: Small part examination
? 6.5 MHz endo-vaginal probe, 5.0 MHz~8.5 MHz Applications: Obstetrics and gynecology examination
? 7.5 MHz rectal Linear Probe Probe Frequency:5.0-10.0 MHz Applications: Animal examination
Physical Identity
